RADIATION PROTECTION & DESIGN
EQUIPMENT AND INSTALLATIONS DESIGN – DECOMMISSIONING – STORAGE – WASTE MANAGEMENT – DETECTION
Applications examples

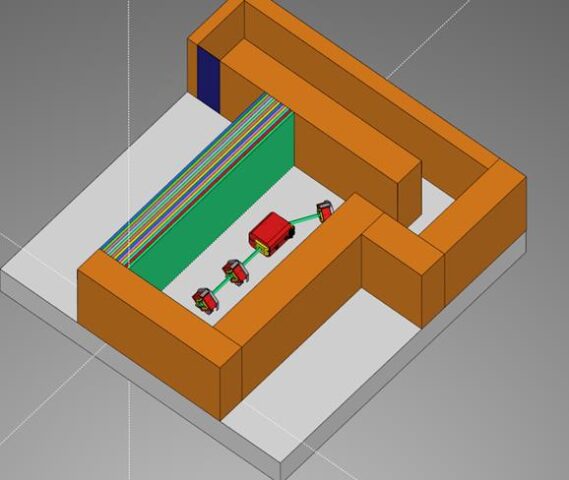

Simulate radiations to design a new equipment, a lab or a complete building. Visualize every radiation leakage and analyze the need of extra ray shielding to minimize exposure to people, material and electrical components.
DOSE CALCULATION & DESIGN

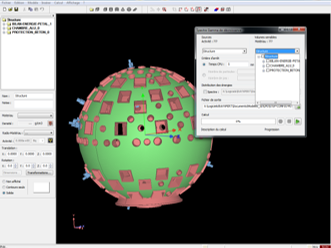

- Import a 3D model or design it by yourself with the all included toolbox
- Create your Gamma, Beta or Neutron sources: isotopes or beams

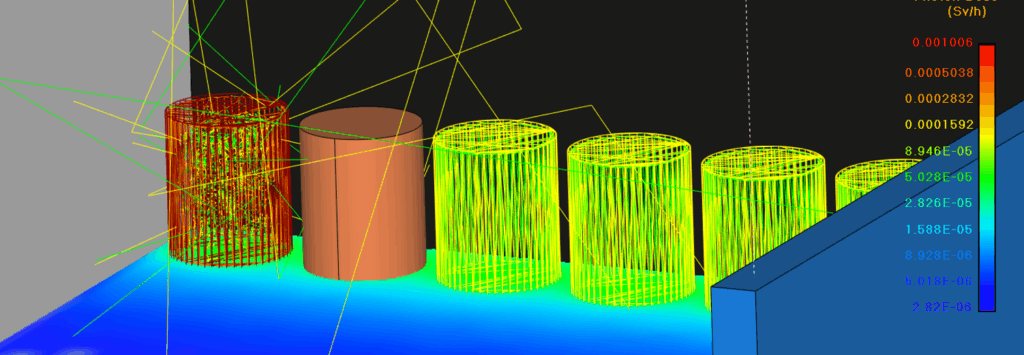

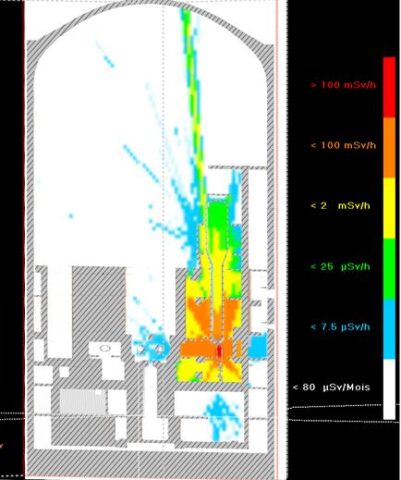

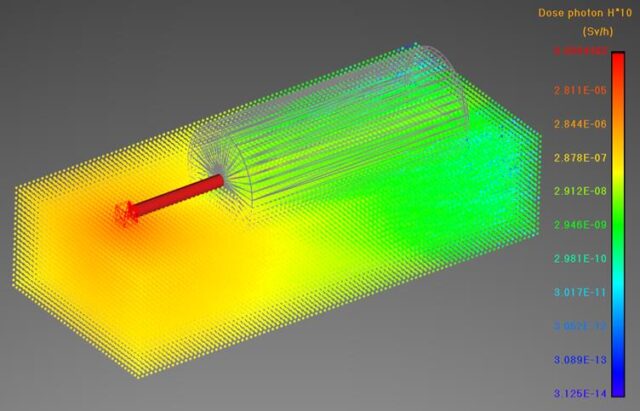

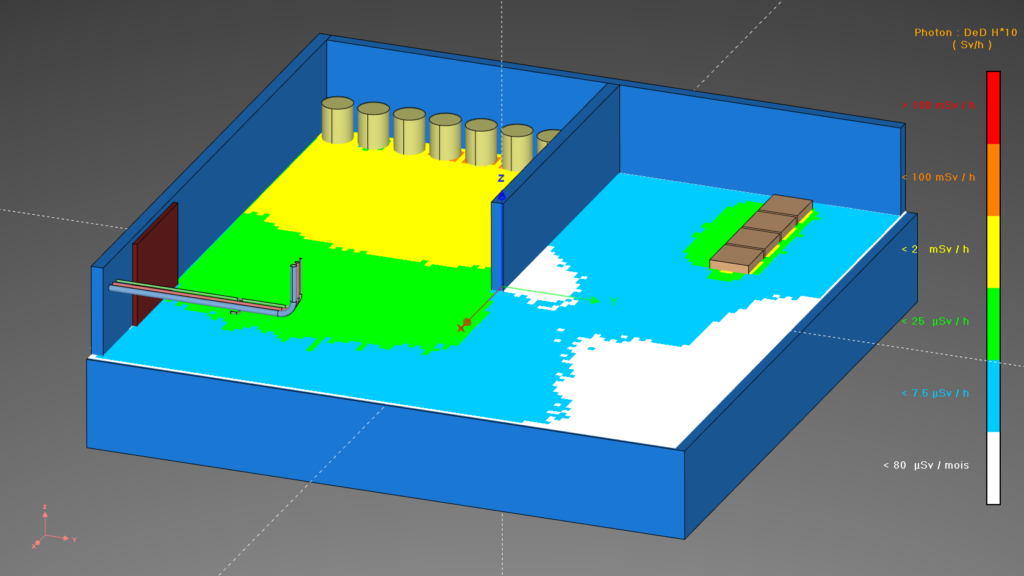

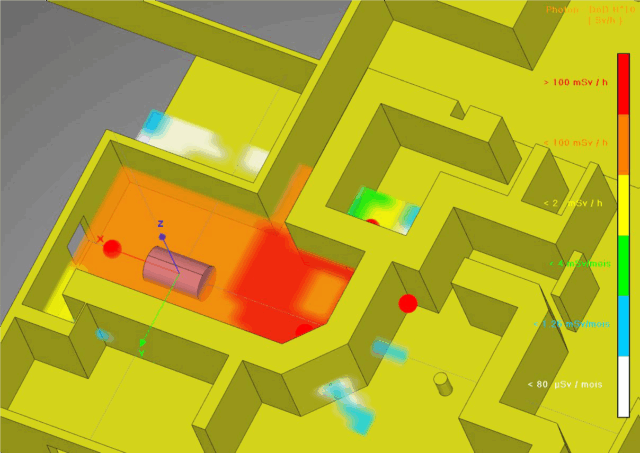

- Visualize in 3D the calculated dose rate within the mapping/zoning
- Optimize the radiological protection: materials, locations, thicknesses
- Adapt the restricted areas
- Move/protect the sensitive parts
DETECTION
- Simulation of gamma radiation detection devices: NaI, GeHP, CZT
- Collisionless calculation (geometric efficiency calculation): necessary step to calculate the transfer functions
- Particle counting: simulate real detector responses from manufacturer parameters
NEW - APPLICATION FOR THE SPACE FIELD
- Design rocket launcher using nuclear react
- Home design on other planet and satellite
- Work on radiation protection for the peoples and electrical components
Case study
Shielding design of a Positron generator - Posithot case study by RayXpert
439.00 KB 212 Downloads
1 March 2021
